Along and across the grain of wood




All trees and pieces of (natural) wood are easy to ‘chop’ with an axe, in one direction only. This downward blow is called cutting "along the grain".

Wood grain directions

Once trees have been cut into logs - they are then cut into ‘planks’ of wood, as shown.

Cutting a log into planks

Wood is much stronger in 1 direction, than it is in the other (opposite) direction. It is the direction of “the grain” which provides and determines the strength across the grain.

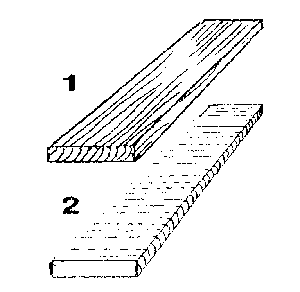

Which of these 2 scaffold-boards do you think will be stronger: 1 or 2?.

Strength along the grain

Which of these 2 arrangements do you think a karate expert would find it easier
to chop in half; A or B.

Strength with support battens

Many years ago trees used to be "chopped- down". Why do you think saws were used
Instead, once they had been ‘Invented' along the grain.

Sawing cartoon
